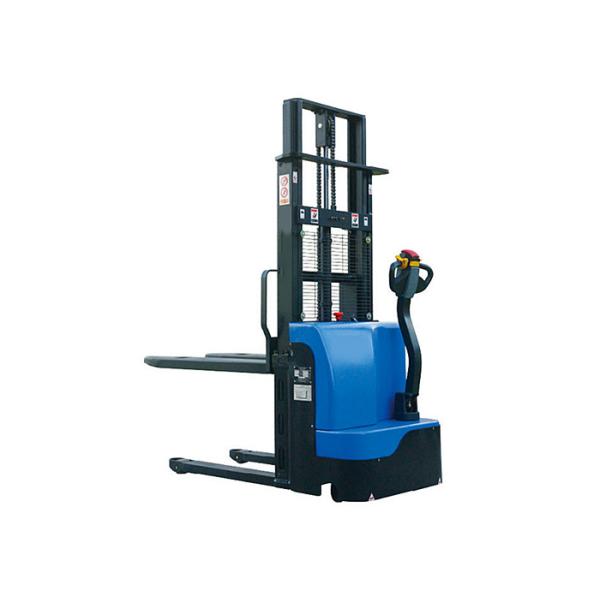

12V Electric Pallet Stacker 1000kg , Mechanical Steering Small Turning Radius

Brand Name : REACH
Model Number : KLD-D(12V)
Certification : CE , TUV
Place of Origin : Zhejiang , China
MOQ : 1 set
Price : Negotiable
Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability : 500 sets per month
Delivery Time : 20 - 35 days
Packaging Details : Nude packing
Maximum load : 1000kg
Weight(with battery) : 680kg
Overall length of frame : 1810mm
Overall width of frame : 850mm
Contact Now

12V Electric Pallet Stacker 1000kg , mechanical steering small turning radius

Quick details:


> Load capacity: 1000kg

> Max. lifting height: 1600mm/ 2000mm/ 2500mm

> Fork dimensions: 65×170×1150mm

> Lift speed, laden/ unladen: 135/140 mm/s

> Travel speed, laden/unladen: 3.5/4.5 Km(h)

> Lowering speed, laden/unladen: 155/150 mm/s

> Aisle width: 2150mm



Product specification:



SPECIFICATIONS
ModelKLD-D(12V)
Load capacity1000kg
Load center distance600mm
Wheelbase1340mm
Front wheelφ85*70mm
Drive wheelφ210*70mm
Additional wheelφ130*55mm
Wheel materialPUmm
Height, mast lowered2120/1610/1835mm
Max. lifting height1600/2000/2500mm
Height, mast extended2165/2670/3010mm
Overall length1810mm
Overall width850mm
Fork length1150mm
Width overall forks680mm
Inside fork width340mm
Fork thickness65mm
Min. founf height15mm
Fork lowered height90mmmm
Min. intersecting aisle width2150mm
Turning radius1550mm
Travel speed, without load4.5km/h
Travel speed, with load3.5km/h
Lifting speed, without load140mm/s
Lifting speed, with load135mm/s
Lowering speed, without load150mm/s
Lowering speed, with load155mm/s
Max. gradient, without load7%
Max. gradient, with load3%
Battery12/120V/Ah
Service weight680kgkg



Advantages:


1) Mechanical steering, operation handle at the truck side, wide view.


2) Horizontal type drive wheel, it is detachable, easy for maintenance.


3) Add idler wheel on the side of mast, reduce friction, ensures the stability of mast.


4) KLD-D uses plate-type chain instead of general roller chain, makes the lifting safer.


5) The supporting legs are high strength Solid flat iron, higher load bearing strength.


6) This model is equipped with curtis controller, AMP waterproof power connector and ALBRIGHT contactor.


7) Electromagnetic type clutch will brake the truck when no power.


8) KLD-D will cut the power off when lift up, makes the operation more secure.
